Shape Rule
Pyramid + mirror
Grow to 2*rows-1 stars, then shrink back to 1 - solid stars every row.
Filled Diamond Star Pattern in JavaScript
Overview
What You’ll Learn

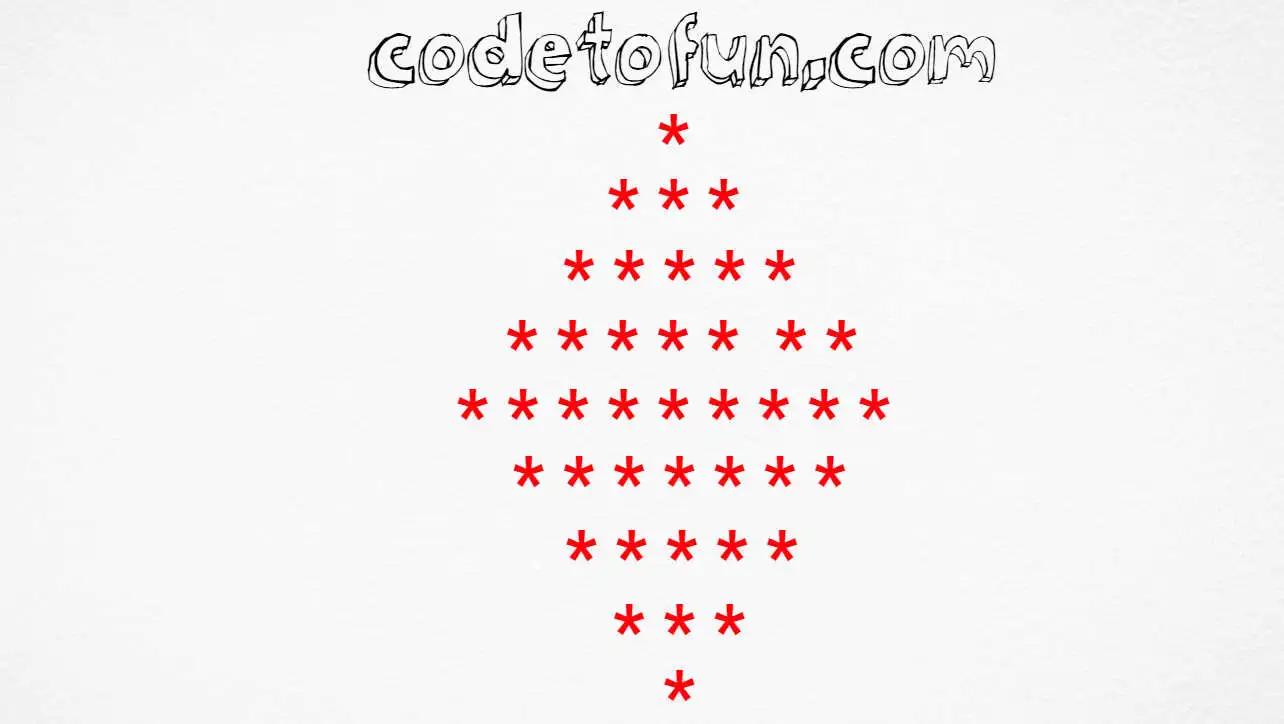

A filled diamond is a center-aligned pyramid stacked with its mirror: spaces for centering, odd star counts for symmetry, and a lower half that starts at rows - 1. This tutorial covers the shape rule, both halves, a live preview, algorithm steps, worked JavaScript examples, edge cases, and complexity.
Leading Spaces
rows - i
Center each row with rows - i spaces before the stars.
Odd Star Runs
2*i - 1
Print 1, 3, 5, … stars so every row has a single center.
No Duplicate Peak
Start at rows - 1
Lower half begins below rows so the widest line prints once.
Live Preview
1–12 rows
Pick a half-height and draw the solid diamond in the browser.
O(n²)
Complexity
2n - 1 lines, each Θ(n) work - overall O(n²), O(1) extra space.
Introduction
A filled diamond is a solid, center-aligned diamond of * characters. You build it by appending a centered pyramid for i = 1…rows, then the same row formula with i running from rows - 1 down to 1.
Unlike the hollow diamond (Program 9), every position in the star segment is filled. Tip rows are shorter; the middle row has 2 * rows - 1 stars and no leading spaces when i == rows.
Why it matters?
It stitches two earlier skills - Program 5’s pyramid and reverse outer iteration - into one figure. Once this clicks, hollow and framed diamonds are smaller jumps.
Key Highlights
Two Phases
Upper 1..rows, then lower rows-1..1.
Same Inners
Spaces then odd star runs - reused in both halves.
Odd Widths
2*i - 1 keeps a centered peak each row.
Solid Fill
Full star segments - not an outline like Program 9.
In short: for each half, append rows - i spaces and 2 * i - 1 stars; grow i to rows, then shrink from rows - 1 to 1.
Foundation
📝 Problem & Approach
Given a positive integer rows (half-height of the diamond), print a solid center-aligned diamond with 2 * rows - 1 lines.
JavaScript
# rows = 5 (conceptual shape; spaces shown as ·)
# ····*
# ···***
# ··*****
# ·*******
# *********
# ·*******
# ··*****
# ···***
# ····*Inputs & Outputs
| Item | Type | Description |
|---|---|---|
rows | int | Half-height (number of rows in the upper pyramid, typically ≥ 1). |
| Printed output | text | 2 * rows - 1 centered lines; row formula uses spaces + odd star runs. |
Minimal workflow
Pseudocode
for i from 1 to rows: // upper half
append (rows - i) spaces
append (2 * i - 1) stars
console.log(line)
for i from rows - 1 down to 1: // lower half
append (rows - i) spaces
append (2 * i - 1) stars
console.log(line)Approach comparison
| Approach | Idea | Best for |
|---|---|---|
| Two outer loops | Upper grow + lower shrink, shared inners | Learning and interviews |
printRow helper | Build spaces and stars as strings | Shorter demos after loops click |
Cheat Sheet
⚡ Quick Reference
| Goal | Pattern |
|---|---|
| Leading spaces | for (let s = 1; s <= rows - i; s++) line += " " |
| Star run | for (let j = 1; j <= 2 * i - 1; j++) line += "*" |
| Upper half | for (let i = 1; i <= rows; i++) |
| Lower half | for (let i = rows - 1; i >= 1; i--) |
| Total lines | 2 * rows - 1 |
| Widest stars | 2 * rows - 1 (when i == rows) |
Compare
📋 Filled vs Hollow vs Pyramid Alone
Same family of patterns - different fill and loop range.
This page
solid diamondFull 2*i-1 star runs; tip rows shorter
Program 9
hollow outlineDiagonal stars only; fixed width 2*rows-1
Program 5
upper onlySame inners as this page’s first half
Interview tip
say both halvesExplain grow then shrink - and why skip i == rows twice
Context
When This Pattern Shows Up
Reach for a filled diamond when combining centering with a grow-then-shrink outer sequence.
After pyramids
Natural next step once Program 5’s centered triangle is solid.
Two-phase loop drills
Practice ascending then descending outer bounds with shared inners.
Symmetry checks
Odd star counts and matching space formulas teach left–right balance.
Gateway to hollow / framed
Programs 9 and 11 reuse the two-phase idea with different fill rules.
Not a graphics API
Terminal teaching pattern - not how you draw diamonds in UI frameworks.
Key benefit: one figure that combines centering, odd widths, and careful outer-loop sequencing without duplicate middle rows.
Interactive
🔮 Live Preview
Choose a half-height between 1 and 12 and draw the filled diamond in the browser.
Hands-On
Examples Gallery
Three complete JavaScript programs - fixed half-height, prompt input, and a printRow helper with repeat. Click View Output to reveal sample console results, or Try it Yourself to run in the browser editor.
📚 Getting Started
Print a diamond with half-height 5 using classic nested loops.
Example 1 — Fixed rows = 5
Same space / star inner loops as Program 5, plus the mirrored lower half.
JavaScript
let rows = 5;
// Upper half
for (let i = 1; i <= rows; i++) {
let line = "";
for (let s = 1; s <= rows - i; s++) {
line += " ";
}
for (let j = 1; j <= 2 * i - 1; j++) {
line += "*";
}
console.log(line);
}
// Lower half (no duplicate widest row)
for (let i = rows - 1; i >= 1; i--) {
let line = "";
for (let s = 1; s <= rows - i; s++) {
line += " ";
}
for (let j = 1; j <= 2 * i - 1; j++) {
line += "*";
}
console.log(line);
}How It Works
Upper i grows from 1 to 5: spaces shrink, stars grow 1, 3, 5, 7, 9. Lower i shrinks from 4 to 1: spaces grow, stars shrink 7, 5, 3, 1 - closing the diamond without reprinting the middle row.
📈 Practical Variant
Let the user choose the half-height at runtime.
Example 2 — User Input Version
Read rows with prompt and parseInt (validate with Number.isFinite in real apps).
JavaScript
let rows = parseInt(prompt("Enter the number of rows:"), 10);
if (!Number.isFinite(rows) || rows < 1) {
console.log("Please enter a whole number of rows >= 1.");
} else {
for (let i = 1; i <= rows; i++) {
let line = "";
for (let s = 1; s <= rows - i; s++) {
line += " ";
}
for (let j = 1; j <= 2 * i - 1; j++) {
line += "*";
}
console.log(line);
}
for (let i = rows - 1; i >= 1; i--) {
let line = "";
for (let s = 1; s <= rows - i; s++) {
line += " ";
}
for (let j = 1; j <= 2 * i - 1; j++) {
line += "*";
}
console.log(line);
}
}How It Works
Same two-phase core as Example 1; only the source of rows changes. Non-numeric input yields NaN with bare parseInt(prompt(), 10) - validate with Number.isFinite for safer labs.
⚡ Shortcut Style
Same diamond without explicit inner character loops.
Example 3 — printRow Helper + repeat
Build each row’s margin and star run in one call each.
JavaScript
function printRow(rows, i) {
console.log(" ".repeat(rows - i) + "*".repeat(2 * i - 1));
}
let rows = 5;
for (let i = 1; i <= rows; i++) {
printRow(rows, i);
}
for (let i = rows - 1; i >= 1; i--) {
printRow(rows, i);
}How It Works
printRow encodes the shared formula once; both outer loops call it. Great after you understand the nested-loop version - keep the explicit space/star loops for exams that want both bounds visible.
🧠 How the Algorithm Prints the Diamond
1
Upper half (i = 1 … rows)
Print rows - i spaces, then 2 * i - 1 stars, then a newline. Star counts: 1, 3, 5, …, 2*rows-1.
Pyramid
2
Lower half (i = rows - 1 … 1)
Reuse the same two inner loops. As i shrinks, spaces grow and stars shrink - for rows = 5: 7, 5, 3, 1.
Mirror
3
Why 2 * i - 1?
Odd widths keep a single center star. Growing by two stars per step adds one on each side and preserves symmetry.
Odd counts
4
New line every row
console.log(line) after the star loop ends each diamond line in both phases.
Line break
=
Solid diamond
2 * rows - 1 lines; widest line has 2 * rows - 1 stars. O(n²) for n = rows, O(1) extra space.
Trace
🔎 Worked Walkthrough — rows = 4
Trace each outer-loop i: spaces, stars, and which half produced the line.
| Half | i | Spaces rows - i | Stars 2*i - 1 | Printed row |
|---|---|---|---|---|
| Upper | 1 | 3 | 1 | * |
| Upper | 2 | 2 | 3 | *** |
| Upper | 3 | 1 | 5 | ***** |
| Upper | 4 | 0 | 7 | ******* |
| Lower | 3 | 1 | 5 | ***** |
| Lower | 2 | 2 | 3 | *** |
| Lower | 1 | 3 | 1 | * |
Total lines: 2 × 4 - 1 = 7. The widest row (i = 4) appears only in the upper half.
Use Cases
Where this diamond (and its two-phase loop structure) shows up beyond the homework prompt.
1. Combining Prior Patterns
Prove you can reuse Program 5’s row body in a second phase.
Example: extract a printRow(rows, i) helper.
2. Symmetry Practice
Odd widths and matching margins train left–right balance.
Example: swap to i stars and watch centering break.
3. Off-by-One Awareness
Starting lower at rows duplicates the peak - a classic bug.
Example: set lower start to rows and compare output.
4. Character Substitution
Swap * for digits or letters once the geometry works.
Example: print i inside the star run for a number diamond.
5. Contrast With Hollow
Solid fill vs outline (Program 9) clarifies why inner logic differs.
Example: side-by-side outputs for the same rows.
6. Complexity Intuition
2n-1 lines of Θ(n) work make O(n²) concrete.
Example: count printed characters for n = 5.
Pro Tip: in interviews, say “upper pyramid, then mirror from rows-1” before writing loops - that sequence is the whole design.
Advantages
Why this solid-diamond approach is a favorite teaching pattern.
1. Reuses Known Building Blocks
Same space/star formulas as Program 5 - only the outer sequence changes.
2. Clear Visual Symmetry
Odd star counts make centering errors obvious immediately.
3. Easy to Factor
One
printRowhelper serves both outer loops cleanly.4. O(1) Extra Memory
Streaming console output needs only loop counters.
Pro Tip: master the nested-loop version first; treat printRow as a polish shortcut afterward.
Usage Tips
Small habits that keep filled-diamond code clean.
1. Extract the Row Formula
Spaces + stars + newline belong in one place so both halves stay identical.
2. Start Lower at
rows - 1Never start the mirror at
rowsunless you want a doubled middle line.3. Keep
2 * i - 1Using
istars alone breaks centered diamond symmetry.4. Validate
parseInt(prompt(), 10)withNumber.isFiniteAvoid
NaNrows when reading interactive row counts.5. Dry-Run a Small n
Trace
rows = 3or4on paper before coding larger demos.
Pro Tip: if the middle row appears twice, your lower loop almost certainly started at i = rows.
Common Pitfalls
Mistakes that commonly break filled diamond patterns.
1. Lower Half Starts at
rowsThe widest line prints twice and the diamond looks “fat” in the middle.
→ Start the second outer loop at
rows - 1.2. Using
iStars Instead of2*i - 1You get a left-leaning or uneven shape, not a centered diamond.
→ Keep odd star counts:
2 * i - 1.3. Confusing With Program 9
Hollow diamonds need different inner logic and fixed line width - not a one-line tweak.
→ Use Program 9 for outlines.
4. Wrong Space Count
rows - i + 1orispaces shifts the whole figure off-center.→ Leading spaces are exactly
rows - i.5. Blind parseInt(prompt(), 10)
Letters or empty input yield
NaN.→ Check
Number.isFiniteand requirerows >= 1.
Edge Cases
Check these inputs before calling the solution done.
rows = 1
Single star
Upper prints *; lower loop does not run - output is one line.
rows = 0
Empty pattern
Both halves skip - print nothing or show a validation message.
Negative
rows < 0
Treat as invalid; re-prompt instead of silent empty output.
Large n
Wide middle row
Middle width is 2*n-1 stars - fine for labs; wrap or scroll on tiny terminals.
Bad input
Non-numeric ReadLine
parseInt(prompt(), 10) yields NaN - validate first.
Half-height
rows meaning
Confirm whether the prompt means half-height or total lines (2n-1).
Drill
🎯 Practice Problems
Try these variations to lock in the pattern.
1. Print upper half only
- Drop the second outer loop
- You should match Program 5
2. Hollow diamond next
- Keep two phases; change fill to outline
- Compare with Program 9
3. Safe input loop
- Validate input until
rows >= 1 - Then draw the diamond
4. Number diamond
- Replace
*with digits ori - Shows the geometry is independent of the fill character
Important
Notes
- Line count. Total lines are
2 * rows - 1; widest stars are also2 * rows - 1. - Row character count before newline is
(rows - i) + (2*i - 1) = rows + i - 1- tip rows are shorter than the middle. - Validate
rows > 0for interactive programs;rows = 1should print a single star. - Hollow and framed variants reuse the two-phase idea but change how each row is filled.
Quick Takeaway: spaces = rows - i, stars = 2*i - 1, grow then shrink from rows - 1 - that is the filled diamond.
Analysis
⏱️ Time and Space Complexity
| Program | Time | Extra space |
|---|---|---|
| Nested loops (Examples 1–2) | O(rows²) | O(1) |
printRow helper (Example 3) | O(rows²) | O(rows) temporary per row string |
About 2 * rows - 1 lines; each line does Θ(rows) work for spaces and stars combined.
🎉 Conclusion
The filled diamond is a centered pyramid plus its mirror: shared rows - i spaces and 2 * i - 1 stars, with the lower half starting at rows - 1 so the peak prints once. Master that two-phase story and hollow or framed diamonds become incremental changes.
Practice the three examples above, then continue to the diamond-in-square pattern for a framed follow-up.
Grow to rows, shrink from rows - 1, keep odd star runs - and validate half-height when reading input.
Pro Tips
💡 Best Practices
✅ Do
- Explain upper grow then lower shrink before coding
- Use
rows - ispaces and2 * i - 1stars - Start the lower half at
rows - 1 - Validate with
Number.isFinitefor interactive demos - State O(n²) time when asked about complexity
❌ Don’t
- Start the lower loop at
i == rows - Use
istars when you need a centered diamond - Confuse this solid fill with Program 9’s hollow outline
- Ignore bad console input in user-facing demos
- Skip the
rows = 1edge case
Summary
Key Takeaways
Knowledge Unlocked
Five things to remember about the filled diamond
Print the solid diamond the beginner-friendly way.
5
Core concepts 01
Two phases
Grow then shrink
Structure 02
Spaces
rows - i
Formula 03
Stars
2*i - 1
Formula 04
Peak once
Lower from rows-1
Gotcha 05
Complexity
O(n²) time
Analysis❓ Frequently Asked Questions
The first outer loop runs i from 1 to rows. On each row it appends (rows - i) spaces, then (2 * i - 1) stars. That builds the upper centered pyramid. The second outer loop runs i from (rows - 1) down to 1 with the same two inner loops, mirroring the shape so the diamond closes.
The first part already prints the widest row when i equals rows. Starting the second part at rows - 1 continues with the next narrower rows without repeating the middle line.
The filled diamond prints full runs of stars using 2*i-1 stars per row. The hollow diamond uses diagonal conditions so only the outline has stars. Both use an upper phase and a lower phase starting at rows - 1.
Odd widths keep a single center star on each row and grow by one star on each side per step, which keeps left-right symmetry.
With n equal to rows, there are about 2n - 1 printed rows. Each row does Theta(n) work for spaces and stars combined, so overall time is O(n^2).
Exactly 2 * rows - 1 lines. The widest line has 2 * rows - 1 stars.
Yes. Upper half is Program 5; lower half uses the same inner loops with i running like Program 6's inverted idea, but starting at rows - 1.
Use parseInt(prompt(), 10) and check Number.isFinite, then require rows >= 1 so bad input does not produce NaN rows.
Did you Know? 🔊
The filled diamond is Program 5’s pyramid plus its mirror: same (rows - i) spaces and (2 * i - 1) stars, with the lower half starting at rows - 1 so the widest row prints only once.
Continue to Diamond in Square
Frame a hollow diamond inside solid top and bottom rows for Program 11.
About the author
12 people found this page helpful
